Newest free driver 5W 6W 10W integrated IC control direct connet 220V 5W 160mm long bar type LED light module with 5730SMD

Specifications :

Type: AC220V LED light board

LED type :5730SMD
Power: 5W /6W/10W
Color : White
Color temperature : 3000-3200K / 6000-6500K
Luminous efficacy: 100-110LM/W
Chip brand: Bridgelux

Color rendering index:>72

Stent material : Aluminum PCB

Beam Angle:120 degree

Input voltage : AC220V

Power factor: 0.9

Operating frequency :50/60HZ
Life:>50000Hr

Dimension : 5W --- 160*12mm

6W---- 450*12mm

10W----520*12mm

Product feature :

1.LED using the high quality encapsulation material with
copper stent , Doublink 99.99% gold wire , Taiwan and American chip brand (Epistar ,Epileds , Bridgelux),Dow corning resin, Intematix phosphor
2. high reliable ,high lighting effect
3. products supplies 100% full power.
4. Low heating generation to reduce electricity consumption
5. Great reducing carbon emission
6. Minimizing drastic climate change
7. Great reducing maintenance cost
8. Long lifespan
9. Instant start, no flashing
10.Low consumption, high brightness.

Product applications :

1. Commercial lighting
2. Architectural Lighting
3. General lighting
4. Automotive lights
5. LED module
6. Traffic Light
7. LED display and so on

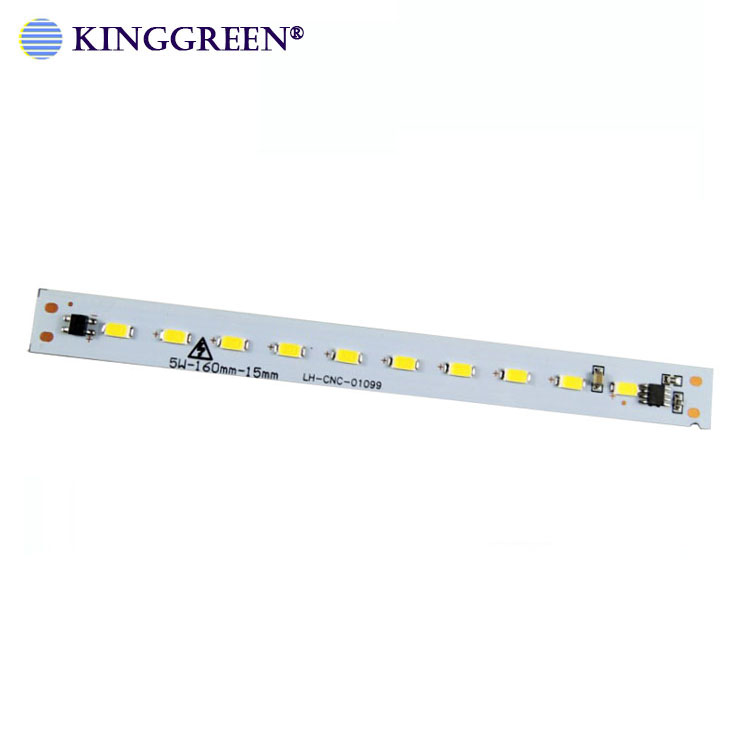

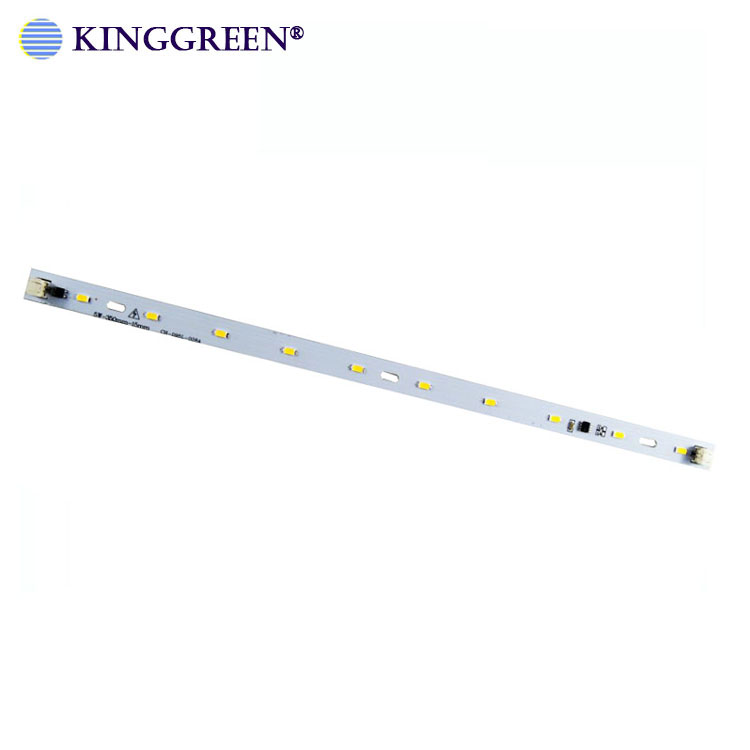

Product picture :
