> Pixel 360 degree ball

Ellipse shape 3D effects WS2811 6LEDs 3535SMD 360 degree 50mm programmable rgb color led pixel ball

Product description:
Inquiry

Product introduction

Specifications:

Ball shape : Ellipse

IC type : WS2811

Color :Full rgb color,24bit,256 gray scale
LED Qty :6pcs 5050 SMD RGB LED
Input Volt :DC24V
Power of each ball :1.44W
Driver method :Constant current circuit
Dimension : 50mm diameter (available 32mm , 50mm diameter )
Beam angle :360degreen 3D full color
Protection Level :Waterproof IP67
Standard connection :20PCS 3D ball per string or customized
Standard wire length :100mm or customized
Control methord :DMX system
Cover : Milky
Lifespan :50000 hours
Warranty : 3 year
Operation temperature :-40-50℃

Store temperature :-50-60℃

Can be customized DMX512 ,UCS1903 ,WS2801

Application:

1). lights, back lights, cabinet lights, edge light, architectural lights for corridor, canopy, archway, lights for path and contour marking; etc.
2). They can be a good choice for advertising,Led screen, night clubs, coffee / wine bars, shopping malls, various shops, cinemas, beauty centers, office fronts, even lights for household kitchens or living rooms, etc

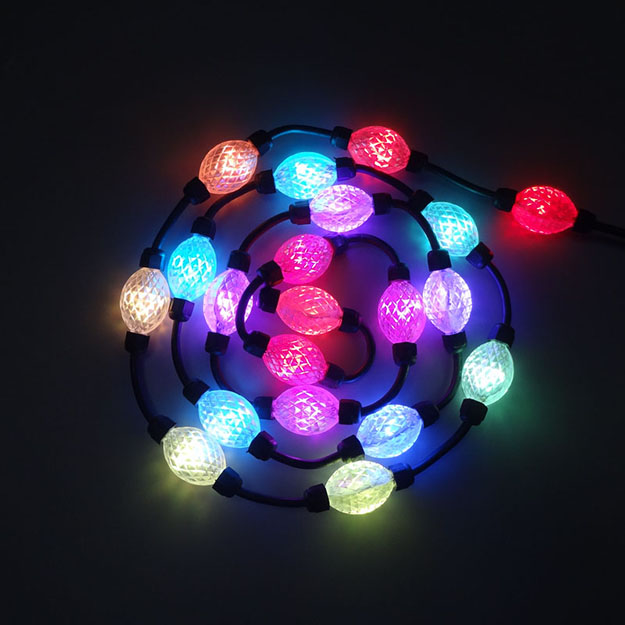

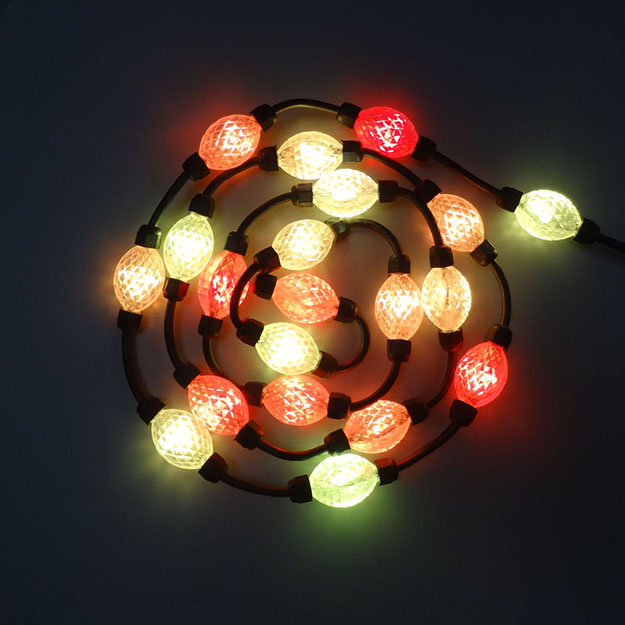

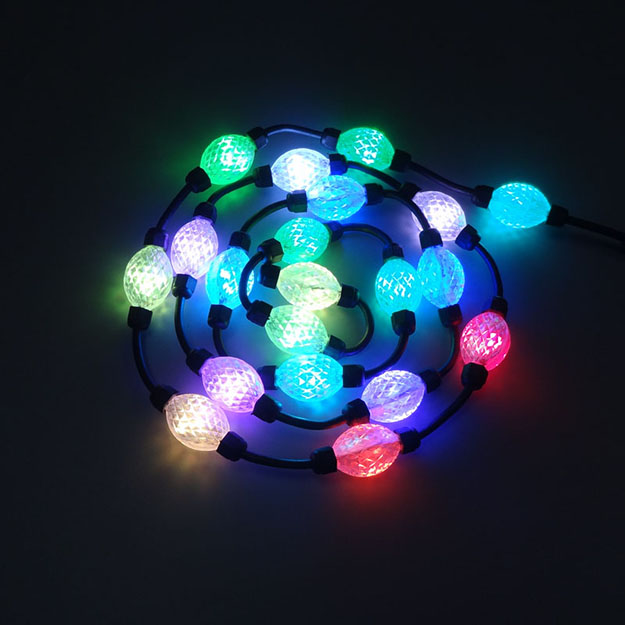

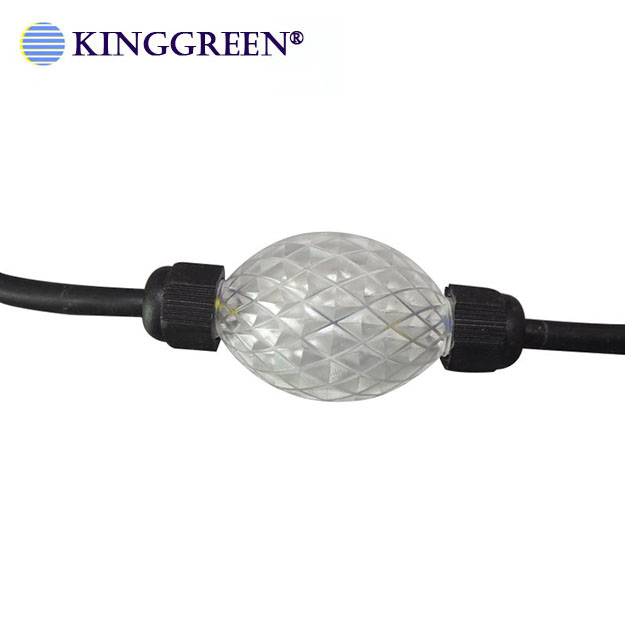

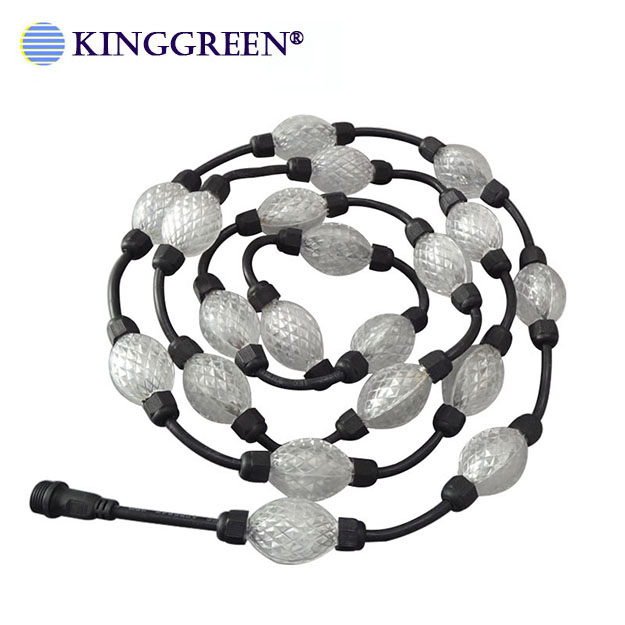

Product picture :
